PRODUCT DETAILS
The Kingpin F-Series light is the most versatile truck, trailer, and camper LED light on the market. The bright and efficient, dual color electronics are protected by an extra thick industry leading chassis and lens design.
Mount them anywhere you can get them 12-volt DC power.

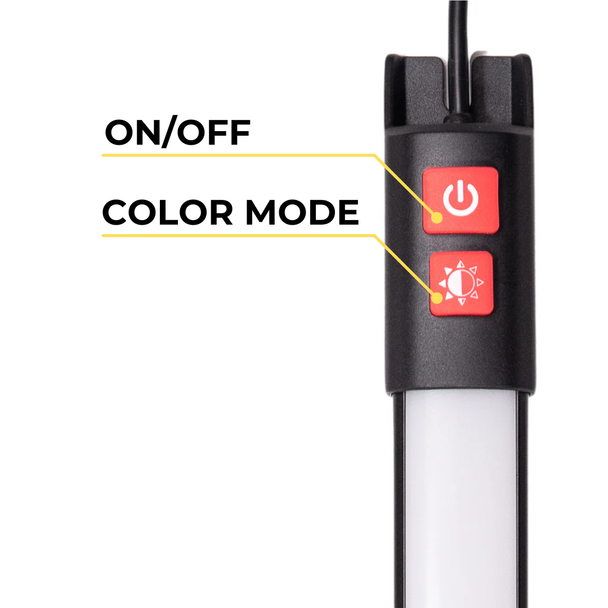

- Built-in on/off and color change buttons

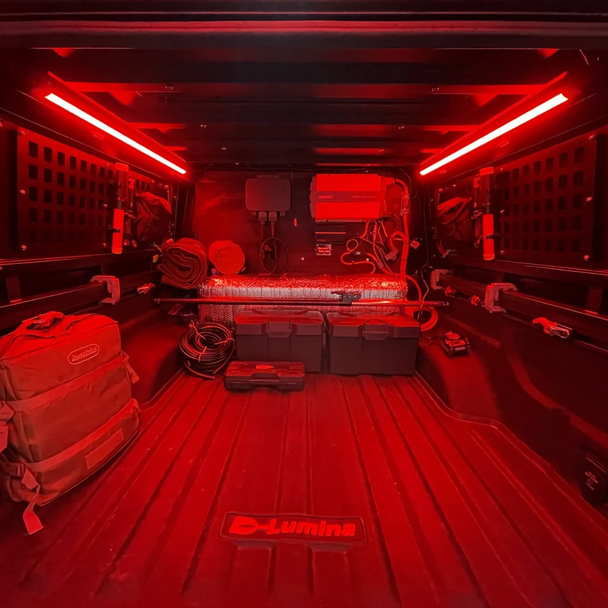

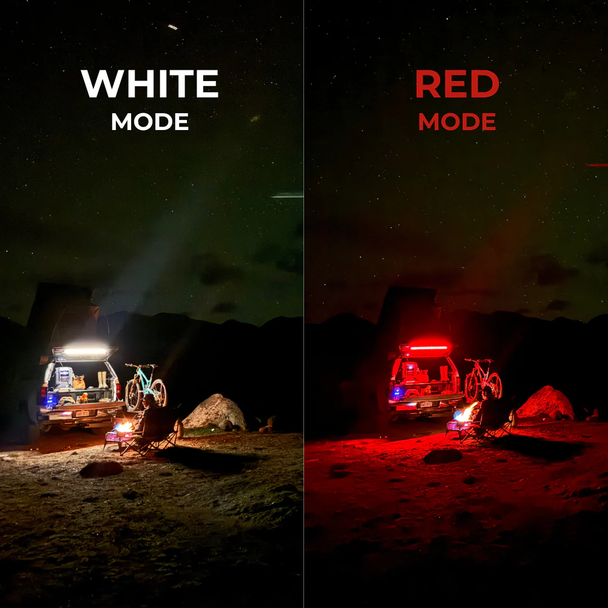

- Two color modes: Red/White
- Properly diffused optical lens

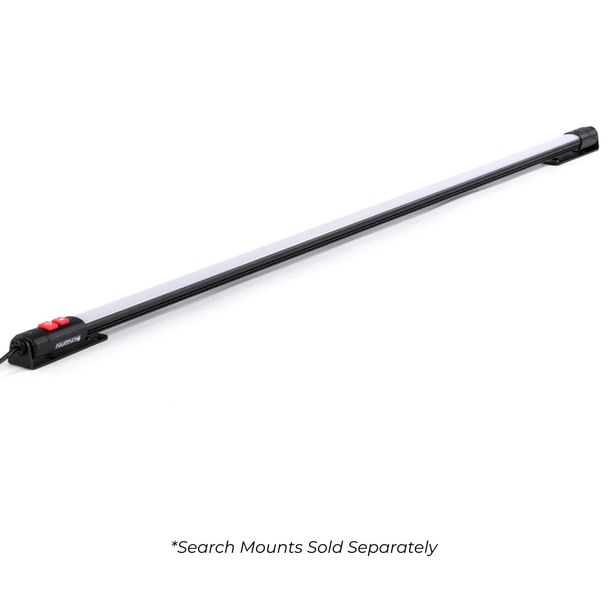

- Fixed mount or rotating mount option. Add 360-degree rotation via F-Series Search Mount kit. (Optional, not included)
- Extreme low profile, durable design
- Weatherproof
- 3M VHB tape and corrosion-proof screws for mounting included
- Works great on T-slot profiles (T-slot hardware not included)
- No exterior switch required to operate - connect to power and go!
- 12V DC power required
- Works with all Kingpin dimmers
The F-Series light beam is wider than the V-Series beam. The lens is wider.
This wider beam maximizes performance when fixed mounted.
The F-Series Search Mount Kit will maximize your mounting options, area coverage, and light control.
TECHNICAL SPECS
Dimensions: 40" L x 1.13" W X 1.13" H
Power: 12 Watts (12V DC @ 1.1 Amps)
Wire Lead: 40" Length, 20AWG, bare wire ends
Beam pattern: Flood
LED Color: White/Red
Requires external switch: No
What's Included:
(1x) F-Series 40" Light Bar
(2x) 3M VHB tape strips
(2x) Pan Head Screws
Installation:
- Mount quick and easy using 3M VHB tape or screws
- Basic electrical skills needed
