Description

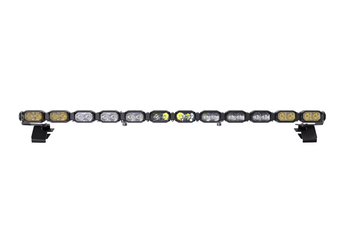

Off-Road Reinvented: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... consistently turning out products packed with more performance, reliability, and best in-class fitment & style. Our Ford Bronco roof-mount LED 4Banger Bar system continues that tradition as a turn-key LED light bar, where you specify the power, the color, and then you destroy the darkness.
4Banger NCS and HXB: The 4Banger packs industry-leading performance into their compact footprint, making them the perfect platform for the Banger Bars. The NCS version provides maximum bang for the buck and out-performs most everything else in their class. The HXB version sits at the top of the performance totem-poll, produces maximum output. With the latest LED chips from Osram inside, each pod is a serious powerhouse of its own.
Performance: The 4Banger Bars are configured to pack some serious punch by pairing our combo, spot, and wide beam pods into a high output light bar. LucidShape and SolidWorks were used to optimize both optical and thermal performance around the most modern, lumen-dense LEDs from Nichia and Osram. With two performance tiers, white, yellow or a white/yellow combo setup, there is a 4Banger Bar to suit every performance need and driving style.
Intensity and Coverage: The Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The wide optics produce a very wide beam that drastically improves visibility off to the sides of the road. The spot beam Illuminates well into the distance and features a highly focused 5-degree hot spot, making it the perfect weapon for long range visibility. While each of these easily does the job on its own... nothing will compare to their coverage when combined.
All Weather: The white-output version is ideal for maximum-visibility in the middle of the night. For those who desire optimal output in rain, snow, or fog, the Yellow-output version will slay in shady weather. If you are ready to roll rain or shine, go with the white/yellow combo, where we spec yellow optics that are ideal for nearfield visibility and white output for central illumination.
Reliability: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 4Banger pods features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The gasket system, integrated DT power connection, and breather valves are all designed according to IP69K standards for full weather resistance. All Banger Bar hardware is CNC machined from solid aluminum and then protected with a dual-layer anodized finish. Your roof rack will rip off your truck before the Banger Bar fails.
Power Up: The Morimoto Banger Bar has been developed from the ground up to set a new standard in their segment, and the same goes for the wire harness that comes included. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder. Deutsch DT female outputs with dual seals. A proprietary M-Spec push button switch with Amber-LED backlight is wired with a quick-disconnect for an easy install with the standard upfitter switches on your Bronco. The harness can be setup to control all pods together, or the inner and outer pods independently.
WHAT'S INCLUDED
-
Mounts: 2x Bronco-specific Roof Mounts (BAF080)
-
LED Pods: 12x Morimoto 4Banger (Color / Tier)
-
Pod Links: 11x 4Banger Adjustable CNC Links
-
Center Support Legs: 2x Central Support Legs
-
Mounting Feet: 2x Bronco Specific L-Brackets (BAF080-4B)
-
Hardware: Complete kit of stainless steel mounting hardware
-
Relay Harness: 1x Morimoto Switched Relay Harness
COMPATIBILITY
-
Ford Bronco: 2021+ (base, Big Bend, Black Diamond, Outer Banks, Badlands, Wildtrak, or Everglades)
-
Bronco Raptor: 2023+
TECH SPECS
-
Peak Luminosity (raw): 16,200lm (NCS), 36,000lm (HXB)
-
Intensity (HXB White): 897,600 Cd (8,976 lux @ 10m)
-
Intensity (HXB Dual Color): 866,800 Cd (8,668 lux @ 10m)
-
Intensity (HXB Yellow): 624,400 Cd (6,244 lux @ 10m)
-
Intensity (NCS White): 600,600 Cd (6,006 lux @ 10m)
-
Intensity (NCS Dual Color): 577,720 Cd (5,778 lux @ 10m)
-
Intensity (NCS Yellow): 414,820 Cd (4,148 lux @ 10m)
-
Power (stabilized): 187.2w (NCS), 504.0w (HXB)
-
Current (amps @ 13.5V DC): 18.00A (NCS), 38.40A (HXB)
