Description

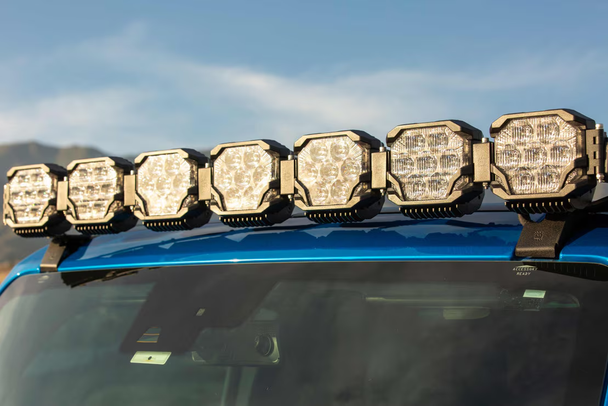

Off-Road Reinvented: Since 2008, Morimoto has been building the best lighting upgrades for the automotive aftermarket... consistently turning out products packed with more performance, reliability, and best in-class fitment & style. Our Ford Bronco roof-mount LED BigBanger Bar system continues that tradition as a turn-key LED light bar, where you specify the power, the color, and then you destroy the darkness.
BigBanger NCS and HXB: The HXB series sits at the top of the performance totem-poll and produces maximum output, they are the undisputed king of candela. Just look at the numbers they're putting out! Each spot beam produces over a half million candela alone, which is staggering! It shares the same housing and optics with the more affordable NCS series, which still out-performs most comparable options in the aftermarket.
Performance: The BigBanger Bars are configured to pack some serious punch by pairing our combo and spot beam pods into a high output light bar. LucidShape and SolidWorks were used to optimize both optical and thermal performance around the most modern, lumen-dense LEDs from Nichia and Osram. With two performance tiers, white, yellow or a white/yellow combo setup, there is a BigBanger Bar to suit every performance need and driving style.
Intensity and Coverage: The Combo beam provides a blend of width and distance illumination making every day driving in the middle of nowhere far more comfortable. The wide optics produce a very wide beam that drastically improves visibility off to the sides of the road. The spot beam Illuminates well into the distance and features a highly focused 5-degree hot spot, making it the perfect weapon for long range visibility. While each of these easily does the job on its own... nothing will compare to their coverage when combined.
All Weather: The white-output version is ideal for maximum-visibility in the middle of the night. For those who desire optimal output in rain, snow, or fog, the Yellow-output version will slay in shady weather. If you are ready to roll rain or shine, go with the white/yellow combo, where we spec yellow optics that are ideal for nearfield visibility and white output for central illumination.

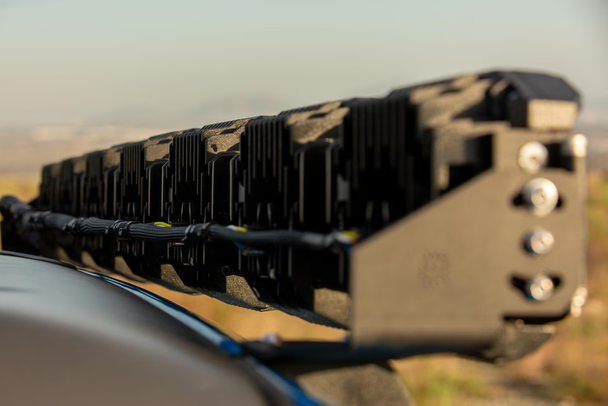

Reliability: With power comes great responsibility. Extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the BigBanger pods features a copper DTP (direct thermal path) PCB that maximizes heat-transfer to the radiator, which has been optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The gasket system, integrated DT power connection, and breather valves are all designed according to IP69K standards for full weather resistance. All Banger Bar hardware is CNC machined from solid aluminum and then protected with a dual-layer anodized finish. Your roof rack will rip off your truck before the Banger Bar fails.
Power Up: The Morimoto Banger Bar has been developed from the ground up to set a new standard in their segment, and the same goes for the wire harness that comes included. Not one component on the harness was overlooked for the sake of cost or simplicity. Triple sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder. Deutsch DT female outputs with dual seals. A proprietary M-Spec push button switch with Amber-LED backlight is wired with a quick-disconnect for an easy install with the standard upfitter switches on your Bronco. The harness can be setup to control all pods together, or the inner and outer pods independently.
WHAT'S INCLUDED
-
Mounts: 2x Bronco-specific Roof Mounts (BAF080)
-
LED Pods: 7x Morimoto BigBanger (Color / Tier)
-
Pod Links: 6x BigBanger Adjustable CNC Links
-
Center Support Legs: 2x Bronco-Specific Center Support Legs (BAF089SB-LOW)
-
Mounting Feet: 2x Bronco Specific L-Brackets (BAF080-BB)
-
Hardware: Complete kit of stainless steel mounting hardware
-
Relay Harness: 1x Morimoto Switched Relay Harness
COMPATIBILTY
-
Ford Bronco: 2021+ (base, Big Bend, Black Diamond, Outer Banks, Badlands, Wildtrak, or Everglades)
-
Bronco Raptor: 2023+
TECH SPECS
-
Peak Luminosity (raw): 22,050lm (NCS), 49,000lm (HXB)
-
Intensity (HXB White): 2,120,000 Cd (21,200 lux @ 10m)
-
Intensity (HXB Dual Color): 1,860,000 Cd (18,600 lux @ 10m)
-
Intensity (NCS White): 1,535,000 Cd (15,350 lux @ 10m)
-
Intensity (NCS Dual Color): 1,372,500 Cd (13,725 lux @ 10m)
-
Intensity (NCS Yellow): 992,500 Cd (9,925 lux @ 10m)
-
Power (stabilized): 255.5w (NCS), 539.0w (HXB)
-
Current (amps @ 13.5V DC): 19.21A (NCS), 38.88A (HXB)
