Description

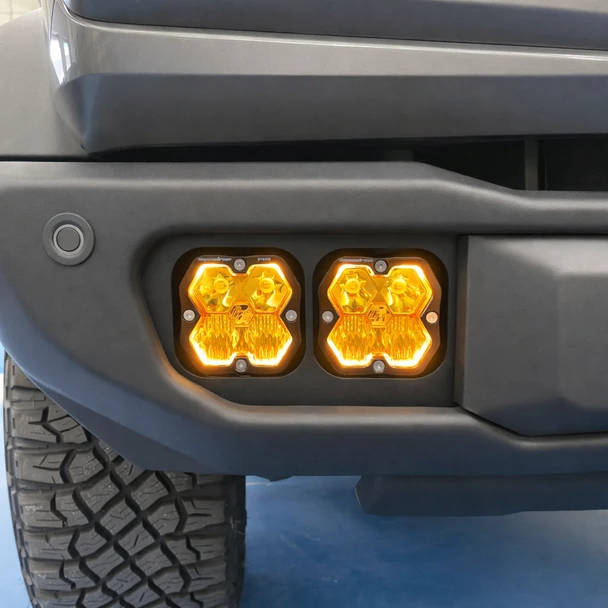

Give that Bronco some much needed lighting with this Dual Fog Light Kit for the 2021+ Ford Bronco. We pair our KR Off-Road Capable Fog Light Brackets with your choice of two pairs of Baja Designs Squadron 2.0 lights, for the ultimate fog light setup.
The KR Off-Road brackets are made out of 12 gauge stainless steel and are powder coated black. The bezel style/flush mount design gives that fog opening a finished look while giving you adjustability in where the lights aim.
Included are the following:
- 1 Pair of KR Off-Road Dual Fog Light Brackets
- 2 Pairs of Baja Designs Squadron 2.0 Lights
- Upfitter Wiring Harness (If you don't have upfitters we recommend an auxiliary switch panel)
- OEM Fog Light Pigtails
- Instructions
- Our Lifetime Guarantee. For as long as you own your Bronco, if you manage to break/bend/destroy the KR Off-Road brackets we'll replace them free of charge (not including return shipping)
NOTE: This product fits the steel capable bumper only. This will not fit the plastic bumper or the HD Modular Bumper. The capable bumper was offered starting in 2022 for the Bronco.
STREET LEGAL NOTICE
Please note that the new Squadron 2.0 lights included with this kit are not offered with an SAE (Street Legal) variant. We recommend going with a Wide Cornering pattern which would be the closest pattern to an SAE Street Legal Fog Setup. If you are in a state that requires street legal fog lights this kit does not offer that pattern right now.
HOW TO ORDER
You'll want to select your light choices from the drop-down. We allow you to select whatever combination of lights you want.
Backlighting

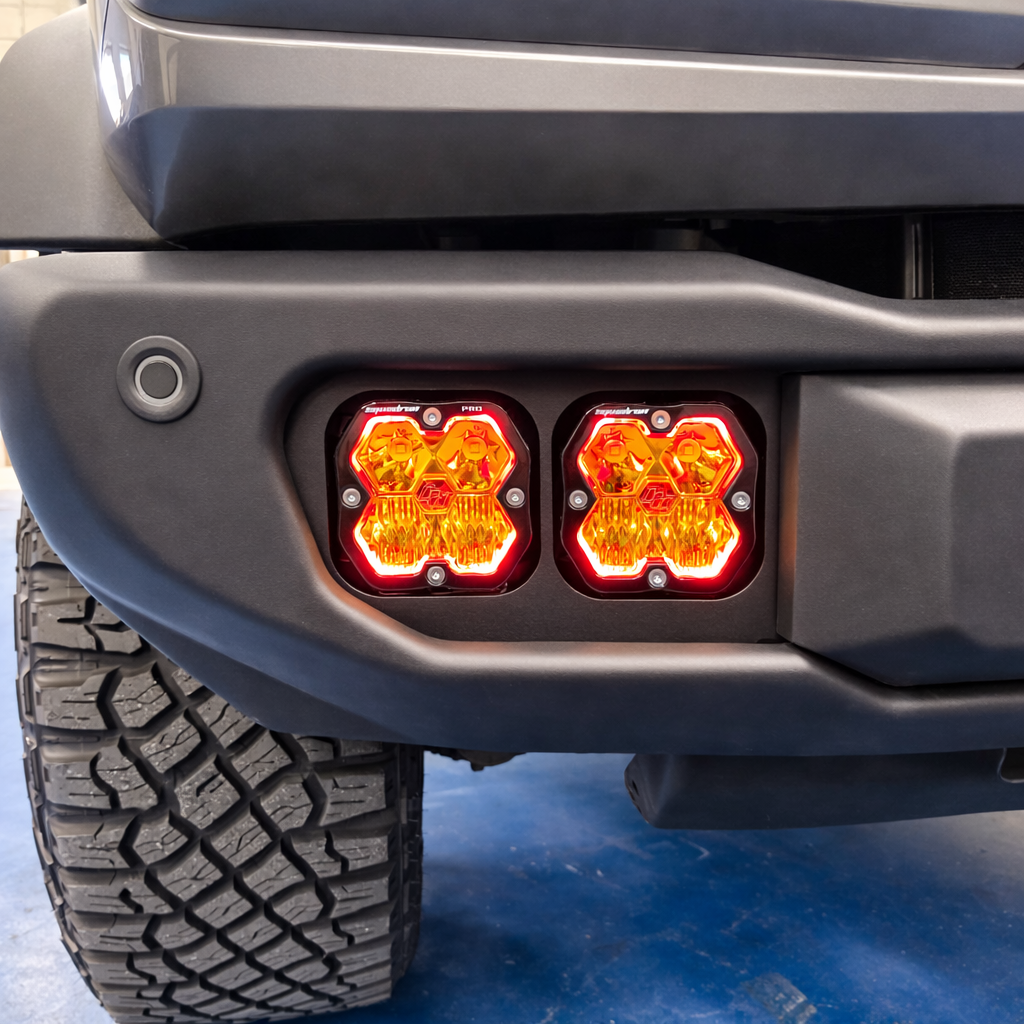

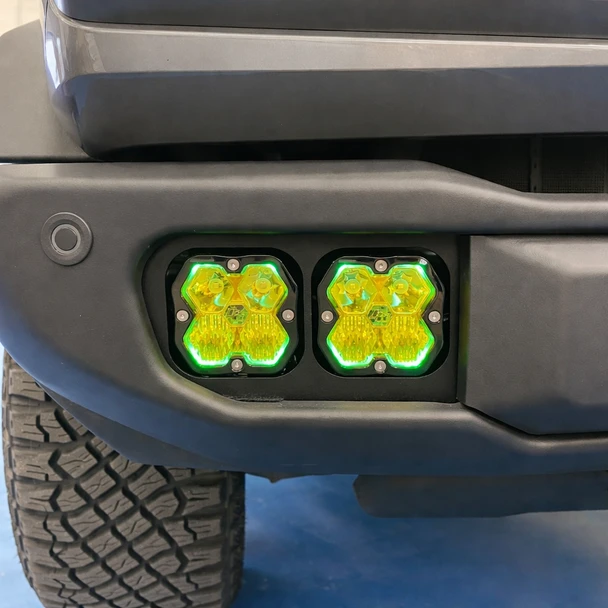

Each pod in this kit includes a distinctive RGB backlight feature that can be controlled separately using the factory aux switches. The backlight on each pod included with the kit fully illuminates providing a more unique and modern look than the small indicator LEDs found in other products.
RECOMMENDATION #1
- Squadron, Wide Cornering
- Squadron, Wide Cornering, Baja Amber
This kit will be the closest to a street legal fog setup. While not SAE rated (street legal) when aimed down you risk blinding oncoming drivers. The clear (white) wide cornering pattern is perfect for normal driving conditions while the Baja Amber (yellow output) wide cornering pattern is great for bad weather.
RECOMMENDATION #2
- Squadorn, Wide Cornering
- Squadron, Spot
Similar to the 1st recommendation, the wide cornering is a good light for normal driving conditions. The 2nd light in a spot will throw light down range to help illuminate those trails.
LENS CHOICES
You have a choice of 4 lenses when it comes to Baja Designs lights.
- Spot: This light is perfect for down range. It's a "Spot" pattern and goes the furthest.
- Driving/Combo: This light combines 2 Spot beams with 2 Wide Beams. It'll give you down range lighting as well as a wide light. Combo is the perfect "cover everything" pattern
- Wide Cornering: This is the widest pattern offered and is perfect to light things up low and wide. While not SAE Rated (Street Legal) it's the best option out of the 4 for a fog light.
- Work/Scene: This is a flood style light which is good for up close areas. It'll disperse the light 136°
POWER CHOICES
Going with PRO over SPORT will throw more light down range as they are brighter lights. If you want the brightest kit available, go with Pro.
SQUADRON 2.0 SPORT
- 3,200 Lumens Each
- 30W/2.2A @ 13.8V
- Operating voltage: 12-32V
- Dimensions: 3.318" (H) x 3.289" (W) x 2.840" (D)
- IP69K Rated
- 26% performance increase over Squadron Sport 1.0
- Lifetime Warranty
SQUADRON 2.0 PRO
- 5,921 Lumens Each
- 65W/5.2A @ 13.8V
- Operating voltage: 123-32V
- Dimensions: 3.318" (H) x 3.289" (W) x 2.840" (D)
- IP69K Rated
- 21% performance increase over Squadron Pro 1.0
- Lifetime Warranty
