Diode Dynamics Stage Series C2R White Flood, Standard (Pair)

FEATURES

• Ultra-compact design for tight mounting spots
• Triple function: high-power white main beam, high-power red main beam, and low-power red accent light
• Patented TIR optics for maximum output
• Pin-fin heatsink design, for superior thermal dissipation
• Limited Lifetime Warranty
• Made in USA with Global Materials

OVERVIEW

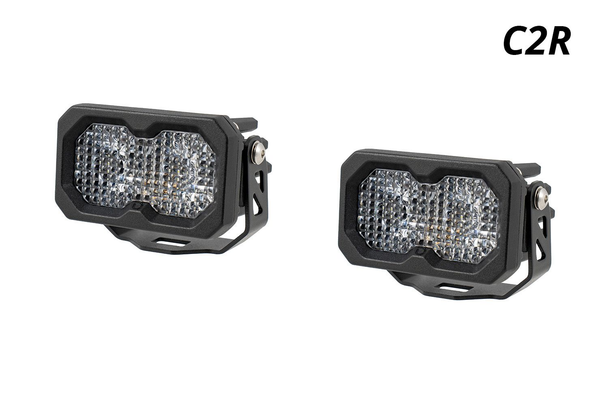

Introducing the Stage Series C2R LED Pod! Building on the improvements of the C2 2.0 LED Pod, the C2R combines the upgraded design with the functionality of our popular C1R LED Pod. This 3-in-1 lighting upgrade provides a high-power white main beam, a high-power red output, and a low-power red accent light. With its compact design, the C2R LED Pod is a go-to for tight mounting spots where larger LED pods won't fit.

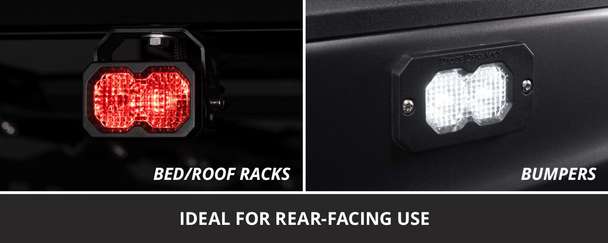

Triple Function. The Stage Series C2R LED pod features a cool white main beam, along with a high-power red main beam and low-power red accent light that can be activated independently. The C2R was designed to serve as a high-power reverse light along with your factory reverse lights, a 4th brake light when your brakes are applied, and a secondary running light with your tail lights.

Performance-Driven. Just like the C2 2.0 LED Pod, the C2R features a new copper-core circuit board that is bonded directly to the LED chips, providing optimal thermal efficiency and performance. Combined with a powdercoated aluminum housing, this advanced design allows the C2R to dissipate heat efficiently, resulting in higher power and light output.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Our patented TIR (Total Internal Reflection) optic in the C2R collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the C2R serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the C2R is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

Flood pattern provides a uniform, even illumination with a broad 70x45 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses advanced pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout, making it perfect for use as a backup light.

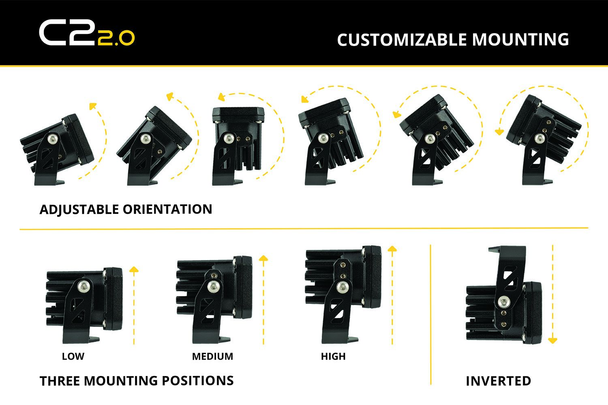

Customizable Mounting. The C2R LED pod features three mounting points to adjust the pod’s height. The revised mounting bracket also allows for even more adjustment to the angle of the pod for a more dialed-in setup.

Simple connections. All C2R LED pods feature a custom-molded DT-type Deutsch-style connector on the back, and come with a 4-pin 6-inch pigtail with bare leads. The yellow wire on the pigtail powers high-power red, the red wire powers the white main beam, the blue wire powers low-power red, and the black wire is ground.

Snap-On Covers. Protect your investment or take the customization even further with our expanded lineup of Snap-On Lens Covers! An all-new amber cover joins our existing clear, yellow, smoked, and black options. No tools required, just snap on and go.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly manufacture and engineer our own products in the United States using globally sourced materials, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

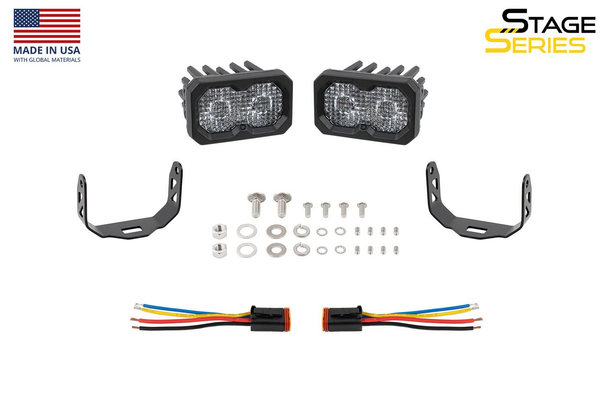

WHAT'S INCLUDED

• Two (2) Stage Series C2R LED Pods
• Two (2) Deutsch-style wire pigtails
• Two (2) Mounting brackets and hardware

SPECIFICATIONS
