NOTE: The Complete Kits are currently out of stock until approximately April 12th. We are out of stock on our CrystaLux Switch Harnesses. We have the brackets available but not the COMPLETE kits.
If you're running one of the KR Off-Road ARB Compressor Brackets on your Bronco, you may be wondering where to install a switch for the compressor. Broncos with factory upfitters have a quick and easy solution but what about trucks without factory upfitter switches? Well this is the solution for you.
This switch/air coupler mount bolts right up to your Bronco using the factory bolts on the passenger side fender. It can be used with or without the KR Off-Road Compressor Mounting Bracket (although it works best when combined with the bracket and a compressor).
The mounting plate allows you to mount the standard ARB switch as well as an air coupler (for those who want to extend their compressors air outlet). This makes for a nice, elegant solution to turn the compressor on/off while standing near the compressor.
FEATURES
- .125" #304 Stainless Steel
- Powder Coated Black Finish
- Designed & Manufactured in the USA
INCLUDES
- 1 Bracket
FITMENT
- 2021+ Ford Bronco w/2.3L Engine
- 2021+ Ford Bronco w/2.7L Engine
WARRANTY
Lifetime Warranty for the original owner.
(Photos shown may differ slightly based on your installation/options)
INSTALLATION TIP: Install your KR Off-Road Compressor Bracket w/Compressor first. Before re-attaching the top 8mm bolt (that holds the factory ground cable down), loosen the 2 mounting bracket bolts (that hold the main compressor bracket to the truck). Don't remove these all the way but loosen them almost all the way. Then slide the switch bracket into place and re-tighten everything.

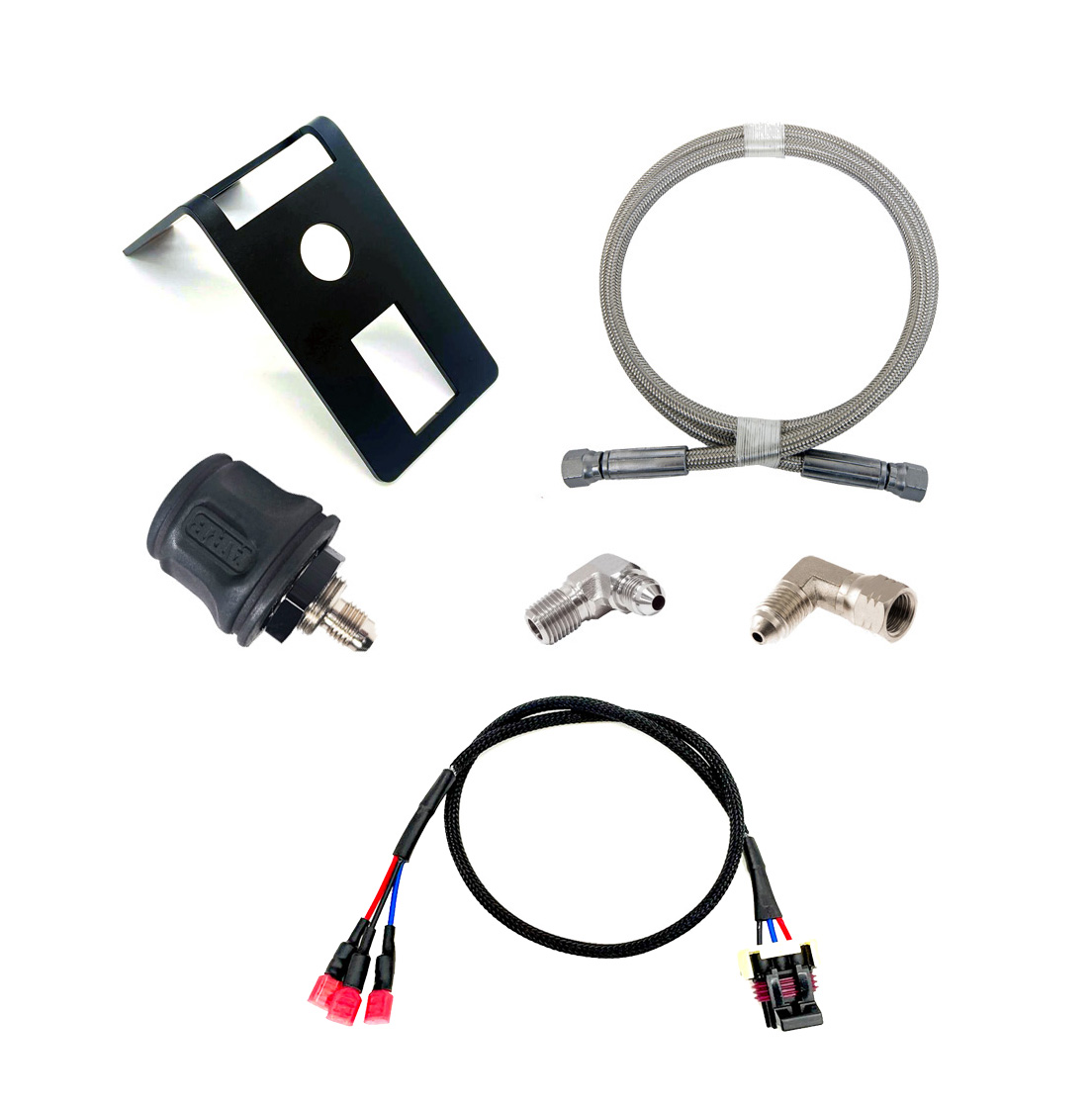

COMPLETE SWITCH KIT
Make your kit complete with this option. You'll receive everything you need to move the air coupler and switch to the side of your compressor. The following items are included with the complete kit:
- 1x KR Off-Road ARB Compressor & Air Coupler Switch Bracket for 2021+ Ford Bronco (SKU: 40-1001)
- 1x ARB Air Hose Coupler (JIC-04 37 Degree Flare Fitting) (SKU: 0740111)
- 1x ARB 90 Deg Elbow JIC4 Male 1/4in NPT Male (SKU: 0740110)
- 1x ARB Elbow JIC-04(M) JIC-04(F) (SKU: 0740104)
- 1x ARB Hose Reinforced JIC-04 0.5M (SKU: 0740202)
- 1x CrystaLux Switch Harness for ARB Twin Compressors (SKU: 71-ARB01)
Note: A switch is not included with this kit, you'll use the ARB switch that was included with your compressor)
Note: The coupler included with the complete kit is not the same coupler that may have been included with your ARB Compressor Purchase. ARB makes two kinds of couplers. One screws into the top of the compressor. The other (included in the complete switch kit here) screws into the fittings/hoses.
